Fleaweight robots are miniature versions of the Robot Wars radio controlled combat
robots.
They weigh 75gms or less and
fit completely within a 3 inch cube. They can be constructed of any materials. Combat is carried out in
an arena approximatly 36 inches square with drop of sides on at least 50% of the arena perimeter. A polycarbonate protective cover must be used whenever spinner
robots fight. A battle is lost once a robot has left the arena or if it has been
disabled for 10 seconds.
Fleaweight Robots

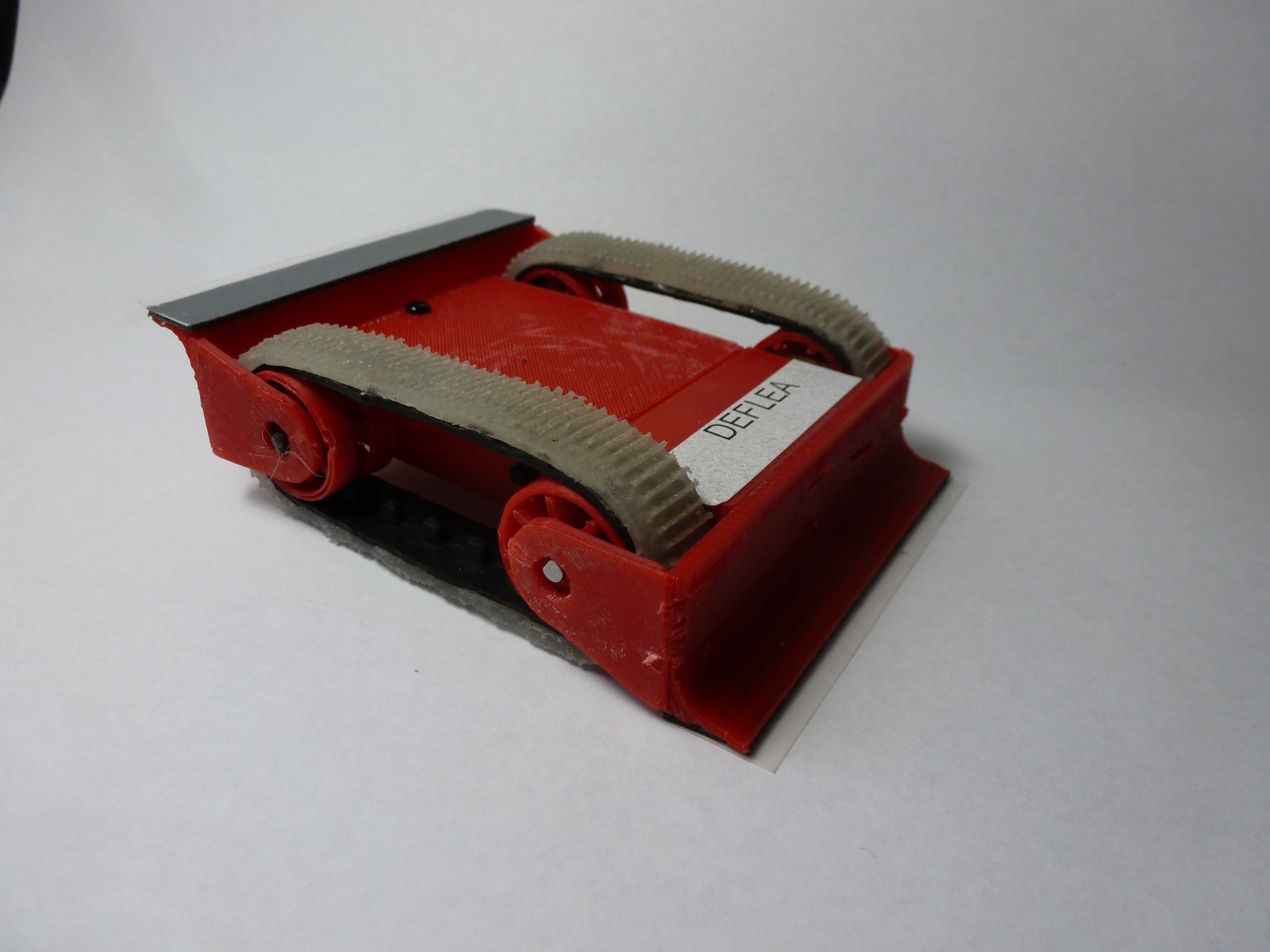

Deflea
|
Drive |
2x 10mm motor 30:1 gearboxes |
|
Wheels |
3D printed wheels / moulded rubber tracks |
|
Weapons |
Invertable Push Bot |
|
Power |
8.4 V 180mah 25C Lithium Polymer
|
|
Chassis |
3D Printed in red ABS |
|
Armour |
ABS Scoops either end |
Shuffleaction
|
Drive |
2 x 10mm motor 30:1 gearboxes |
|
Wheels |
3D printed wheels / moulded rubber tyres |
|
Weapons |
Horizontal Spinner Titanium Blade |
|
Power |
8.4 V 250mah 15C Lithium Polymer |
|
Chassis |
3D printed red ABS |
|
Armour |
Polycarb front and sides |
|
Drive |
2 x 10mm motor 100:1 gearboxes |
|
Wheels |
3D printed wheels / moulded rubber tyres |
|
Weapons |
Lifter / Flipper |
|
Power |
8.4V 120mah Lithium Polymer |
|
Chassis |
3D printed in red ABS |
|
Armour |
Titainium scoop |
|
Drive |
2 x 10mm motor 30:1 gearboxes |
|
Wheels |
3D printed / moulded rubber shuffle legs |
|
Weapons |
Horizontal spinner |
|
Power |
8.4 V 180mah 25C Lithium Polymer |
|
Chassis |
3D Printed in black PLA |
|
Armour |
None |
